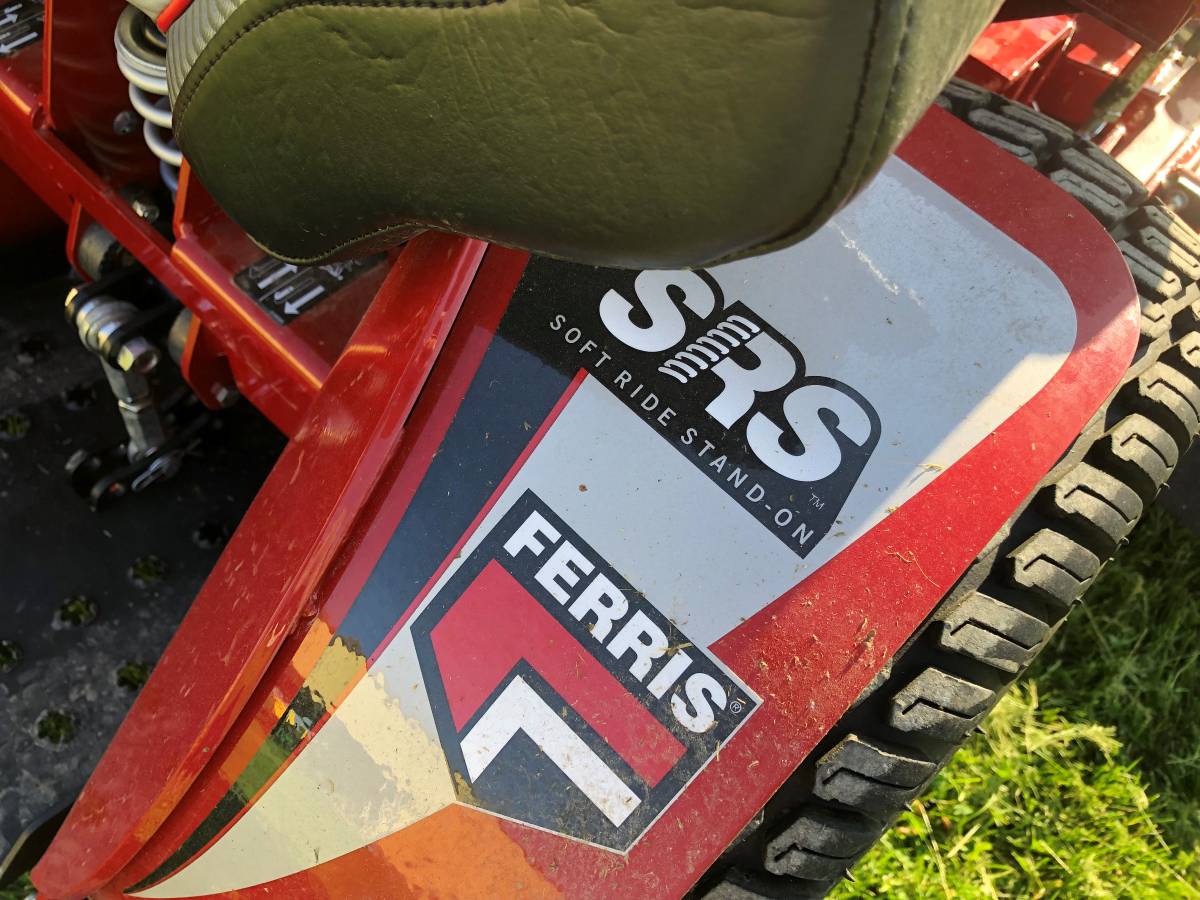

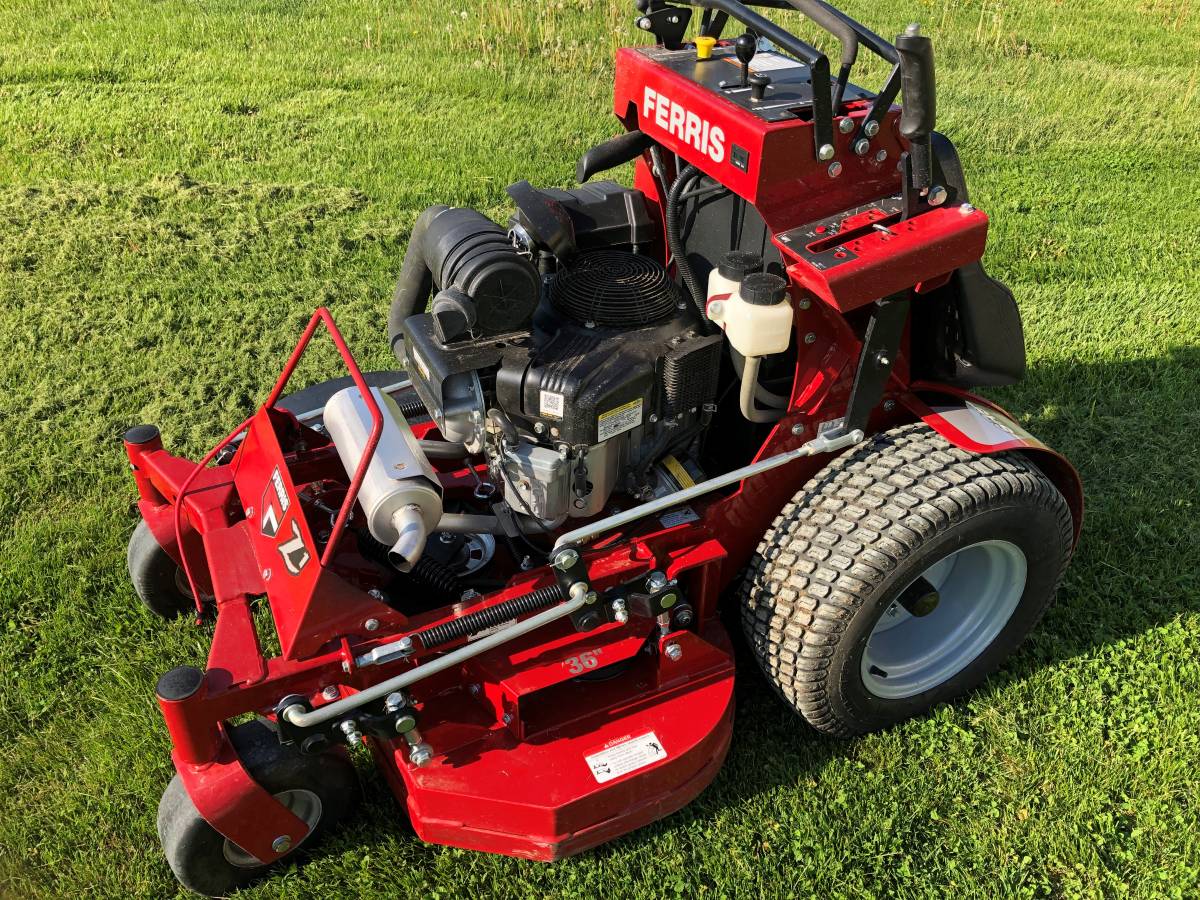

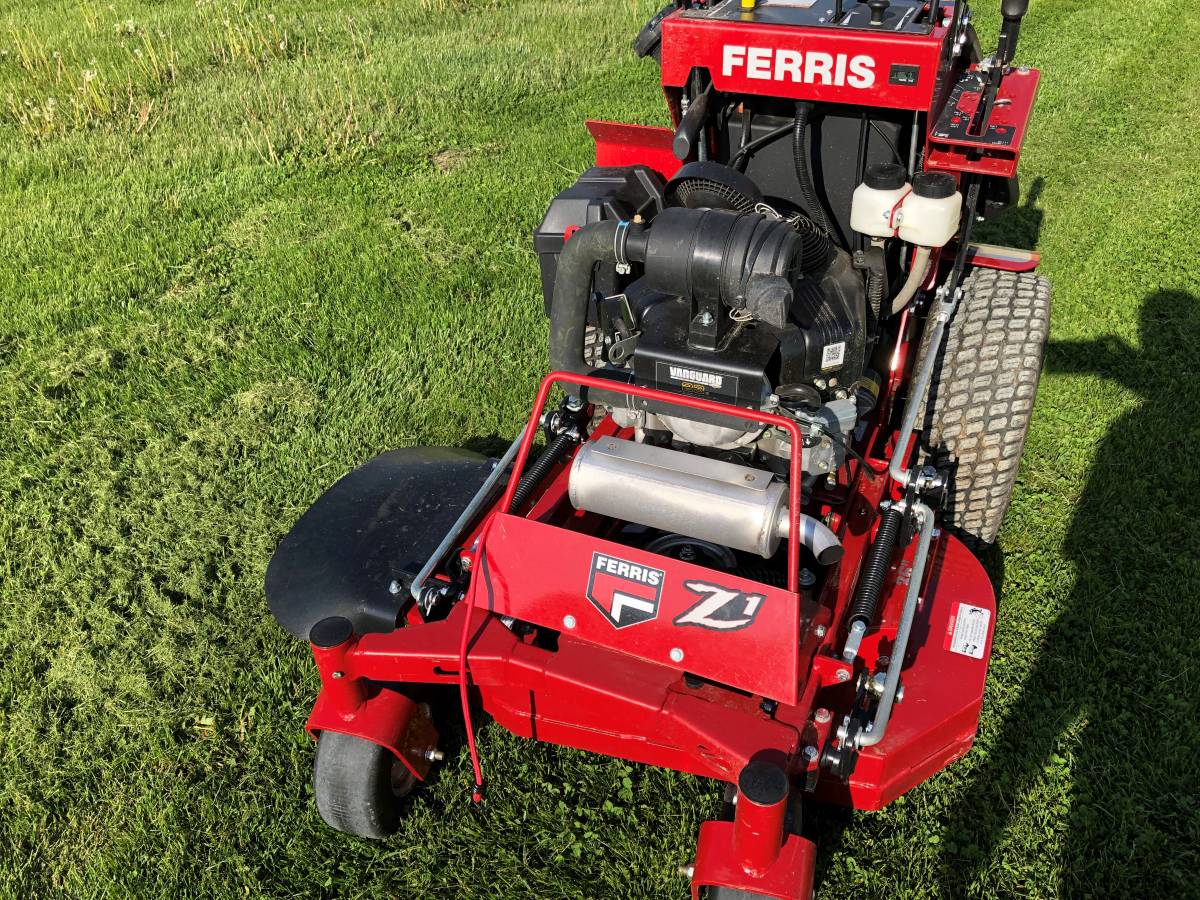

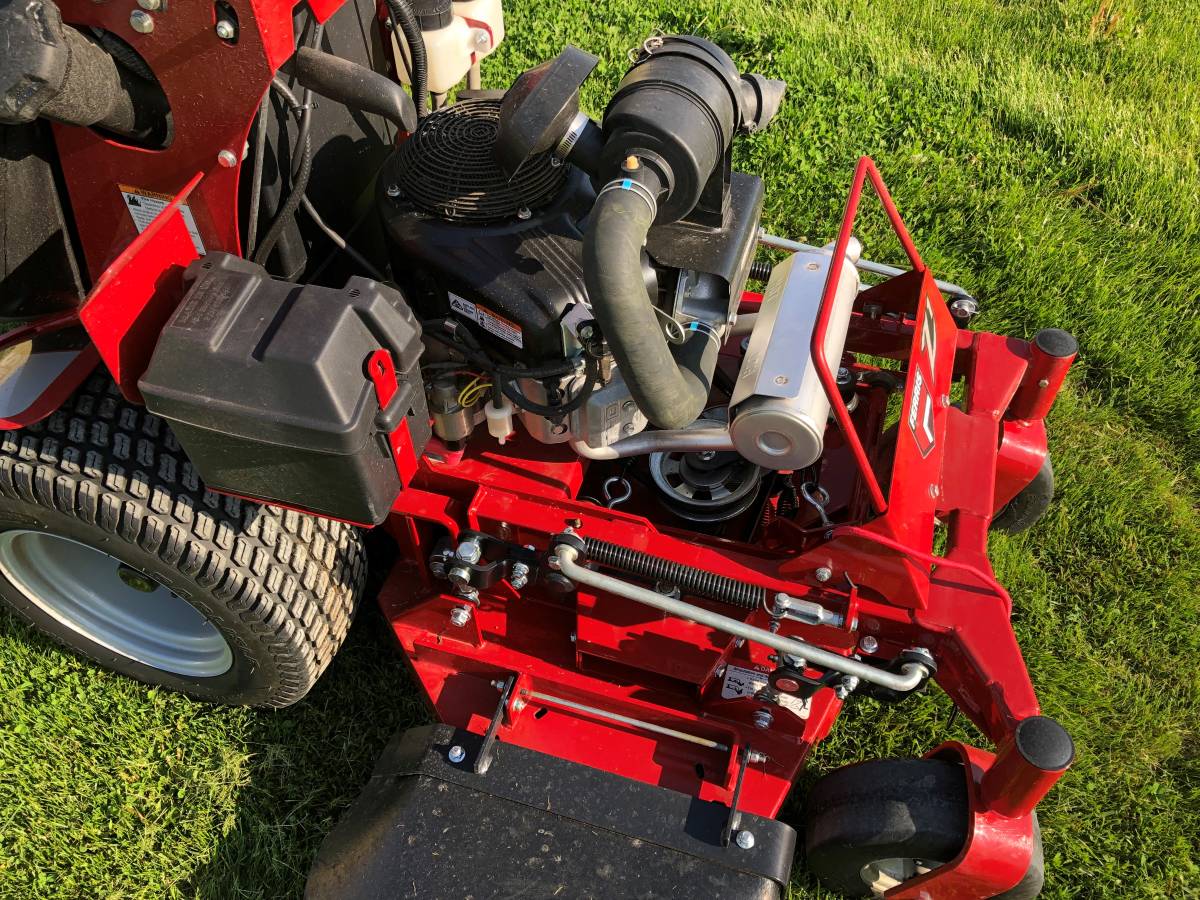

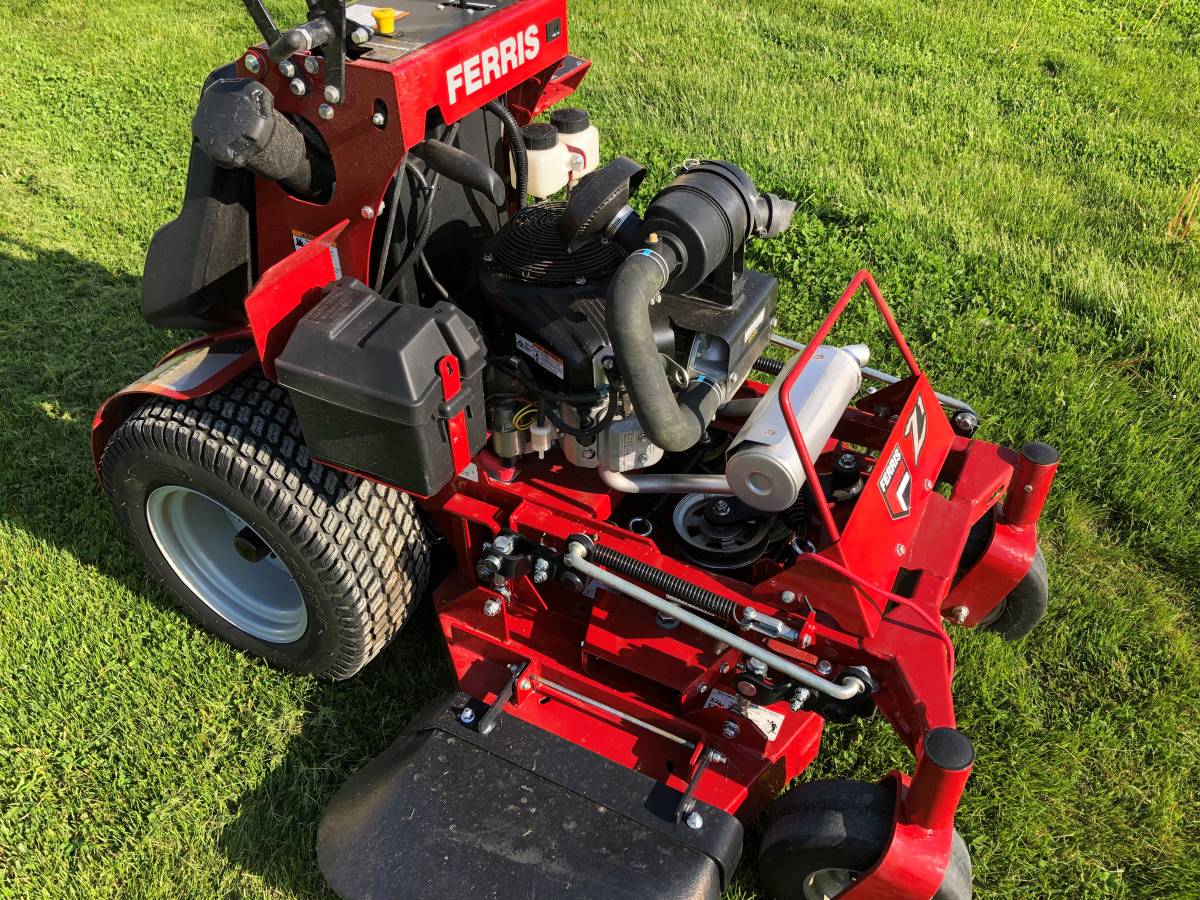

The Soft Ride Stand-On mower provides the same high productivity and convenience as the bigger SRS Z2, but in a more compact package. The 2018 Ferris 36 “Stand On Mower is ideal for navigating through narrow doors or loading on larger trailers with lower mowing deck choices. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1 features suspension technology that provides operator convenience and efficiency.
Specifications
Displacement (cc): 627
Fuel tank capacity (gal): 6
Caster tires (in.): 11 x 4-5, flat-free
Cutting width (in): 36
Deck construction: 10-gauge fabricated
Starting: electric
Drive tires (in): 23 x 8.5-12
Dry weight (lbs): 765
Transmission: hydro-gear® zt-3400® transaxles with 7″ cooling fans
Overall width (in) deflector down/deflector up: 48.5/37

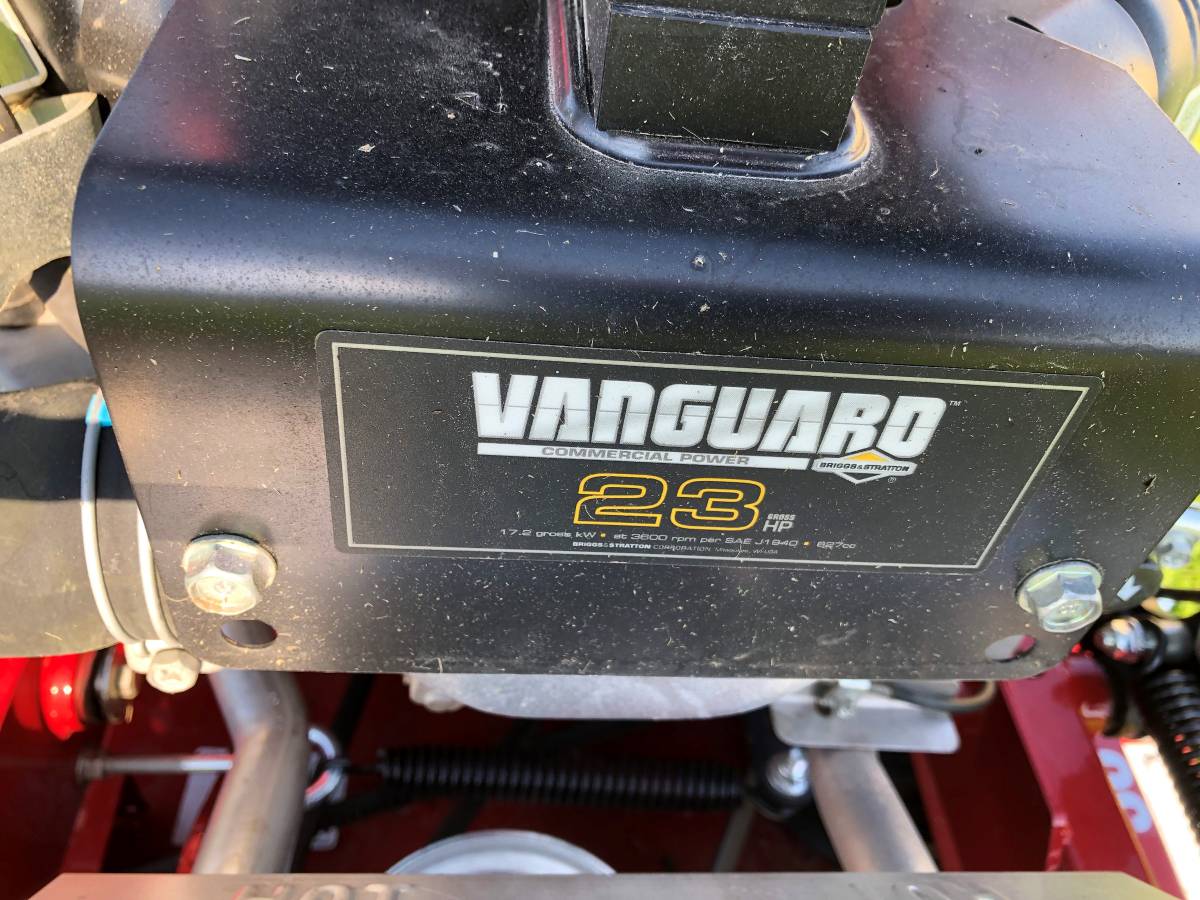

Engine brand: vanguard™
Pto: electric
Overall length (in): 63.5
Safety group: Platform operator, security brake parking circuit for motor starting
Drive axles (in): 1.125

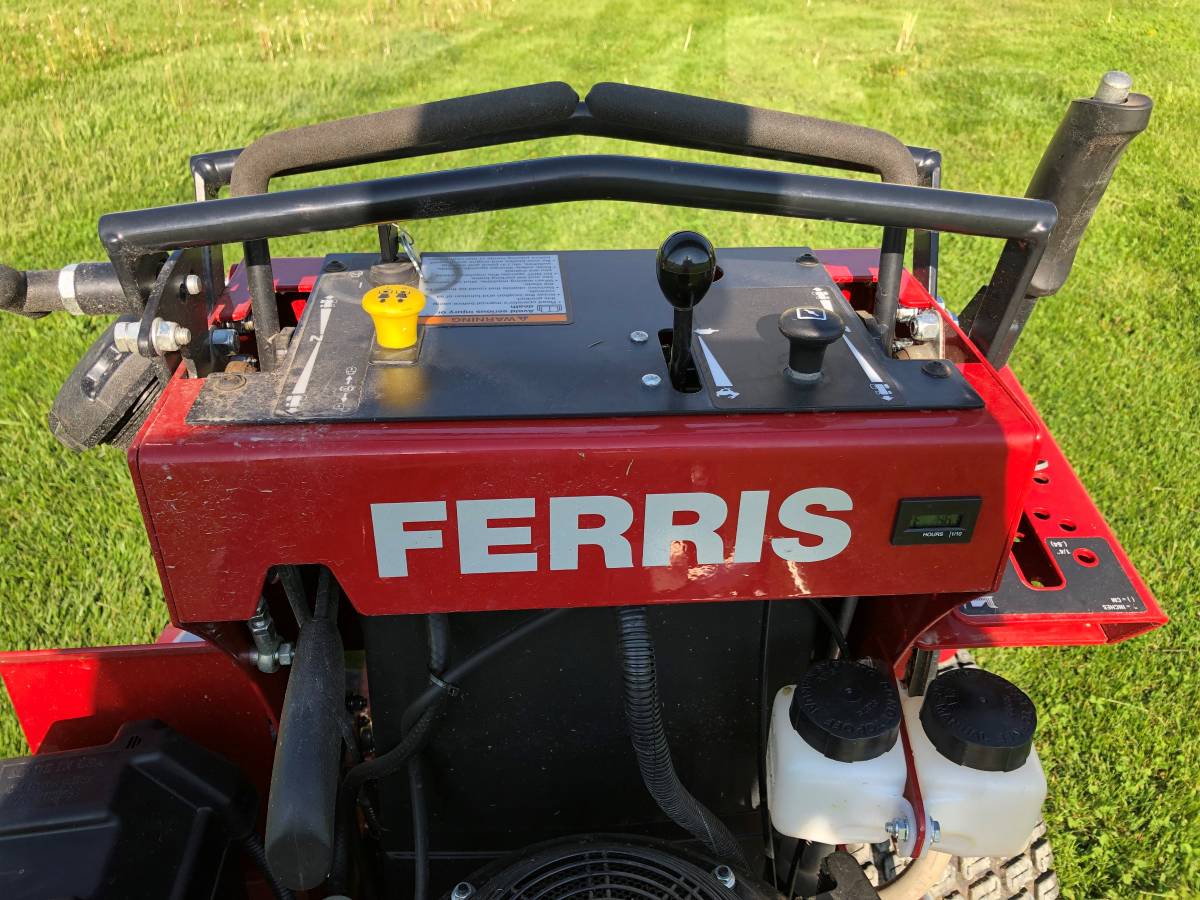

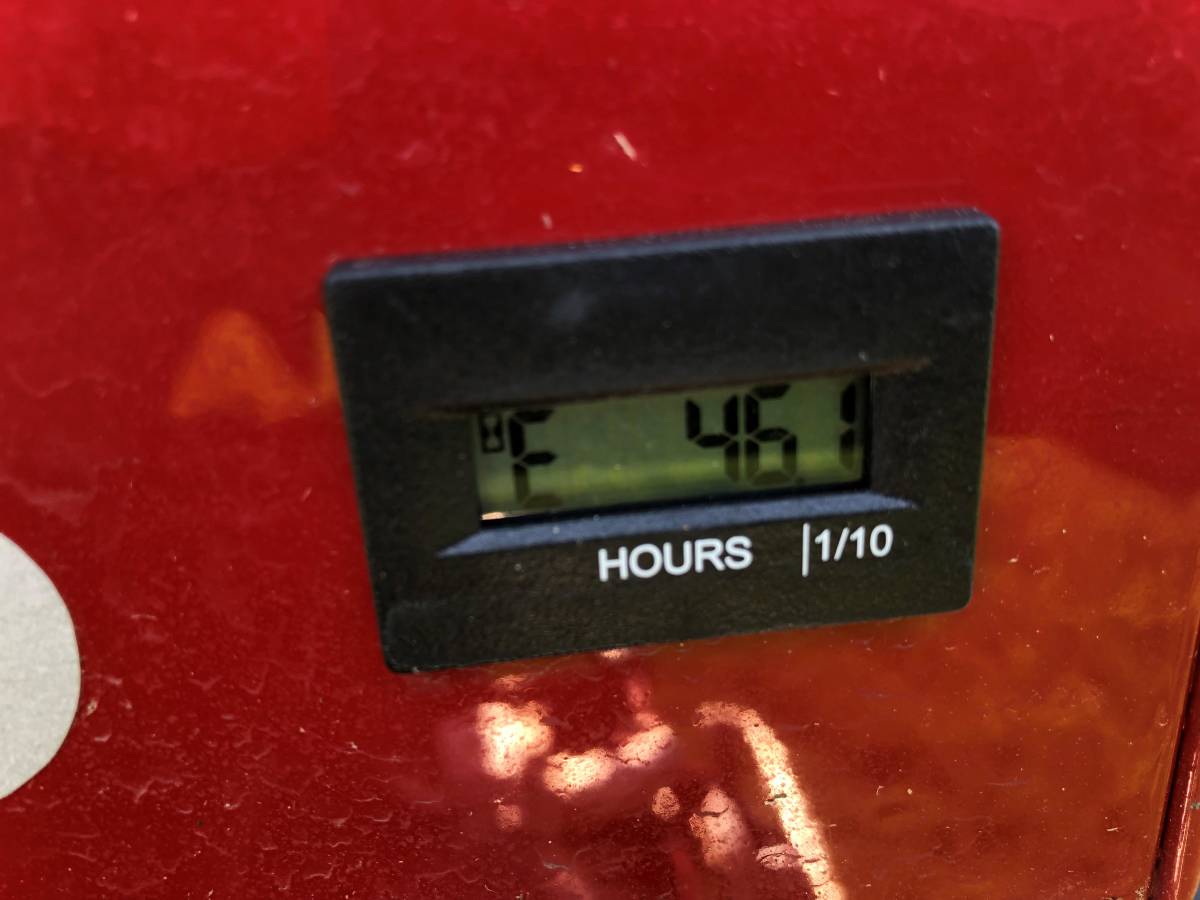

Instrumentation: engine and pto hour meter, fuel level gauge
Parking brake / safety circuit: internal transaxle
Ground speed-rev (mph): 0-4
Cylinders: 2
Cutting height (in): 1.75-4.5
Seat package: n/a
Suspension: adjustable coil-over-shock; operator suspension platform
Spindles: aluminum
Ground speed-fwd (mph): 0-8
