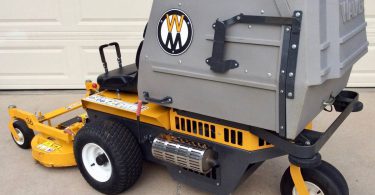

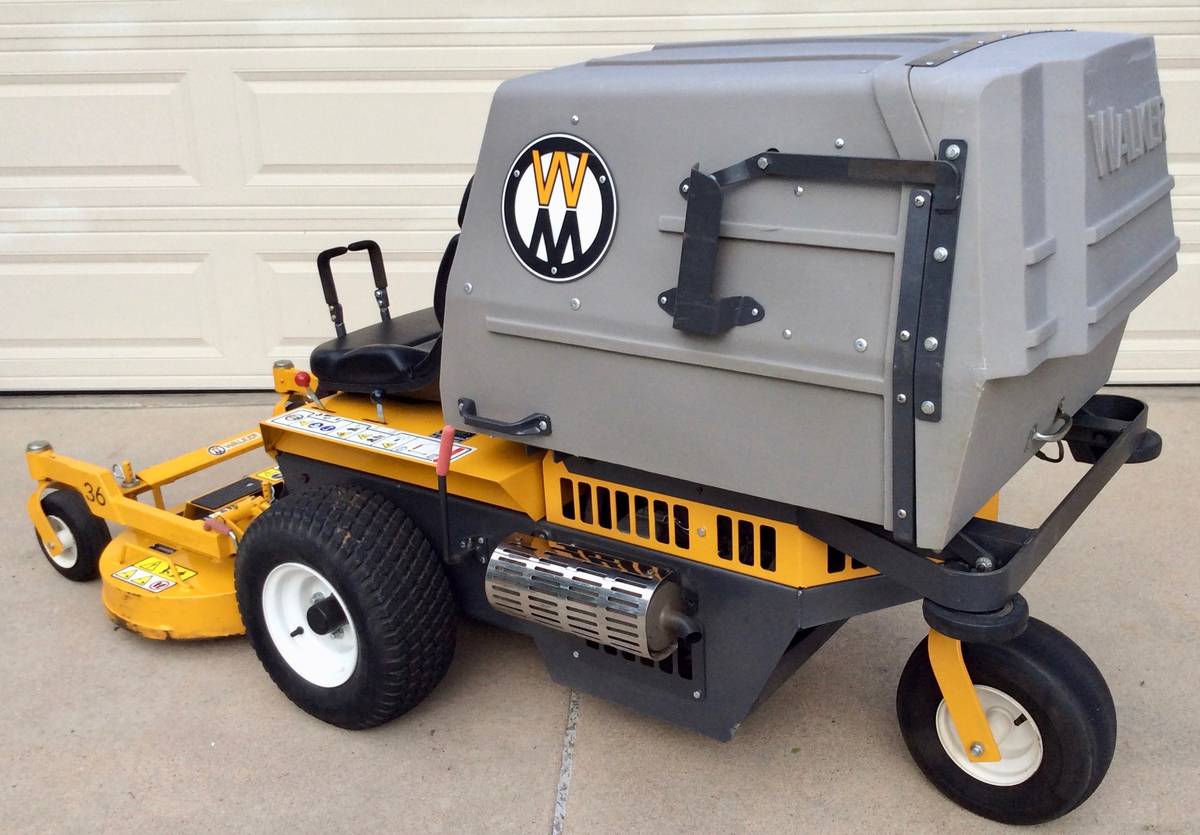

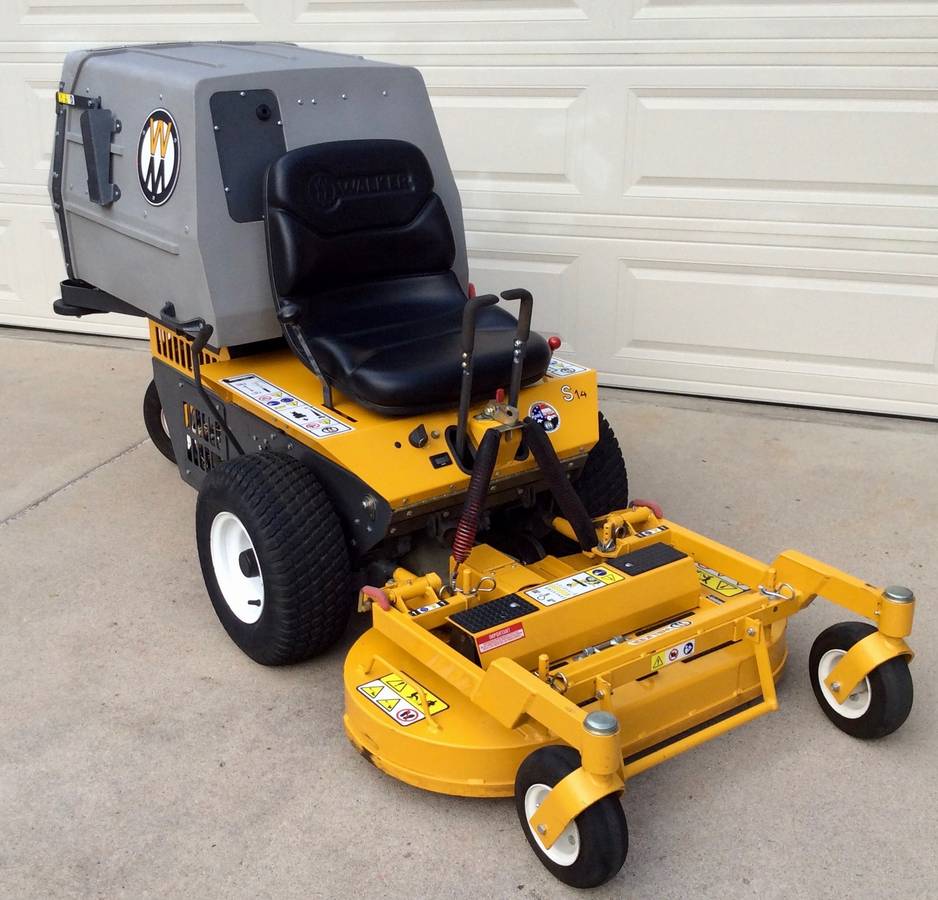

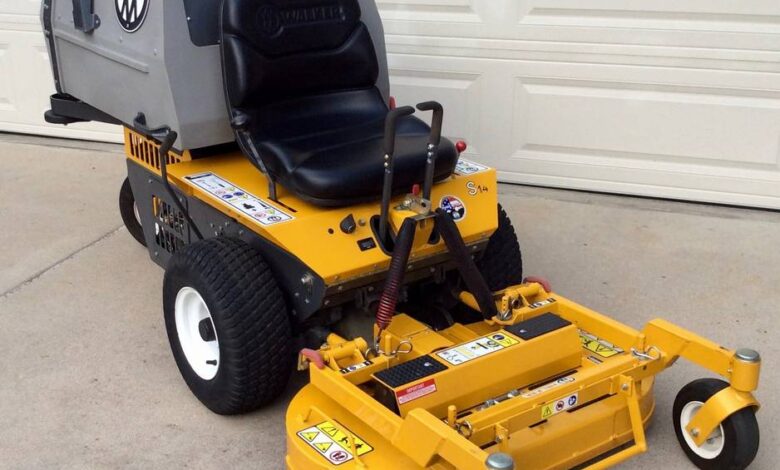

The Model S is an excellent choice for residential lawns due to its unique features. Equipped with Walker’s Grass Handling System® (GHS), including a patented PTO GHS blower and a 7.0 bushel grass catcher, this mower is designed to efficiently handle grass clippings. Its compact design, combined with Walker’s precision steering levers and Forward Speed Control, enables easy maneuverability around tight landscape features and obstacles, reducing the need for hand-held trimming and walk-behind mowing.

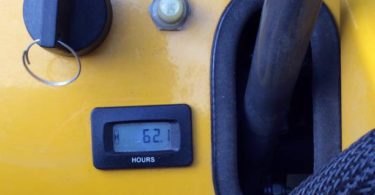

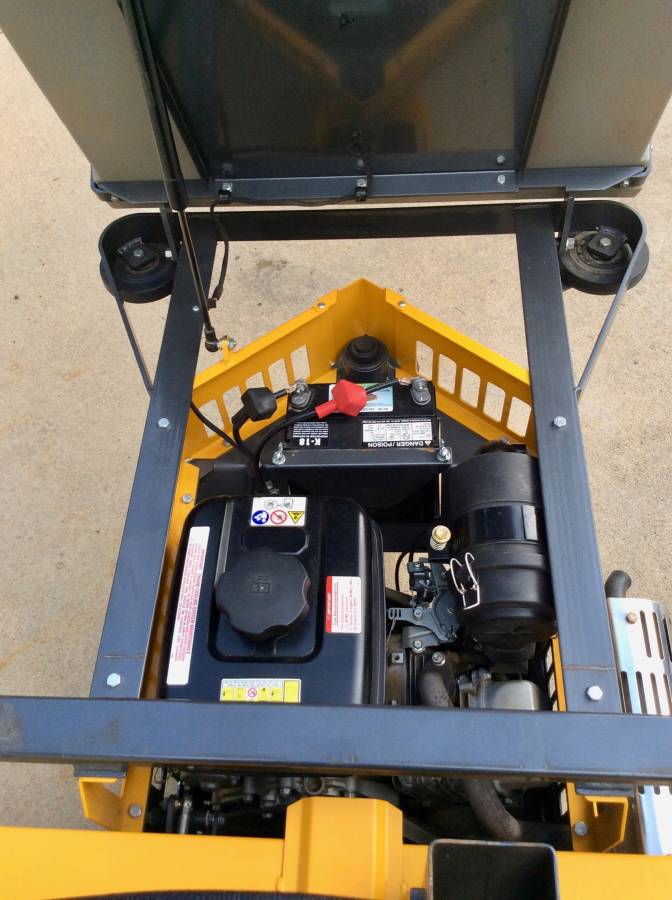

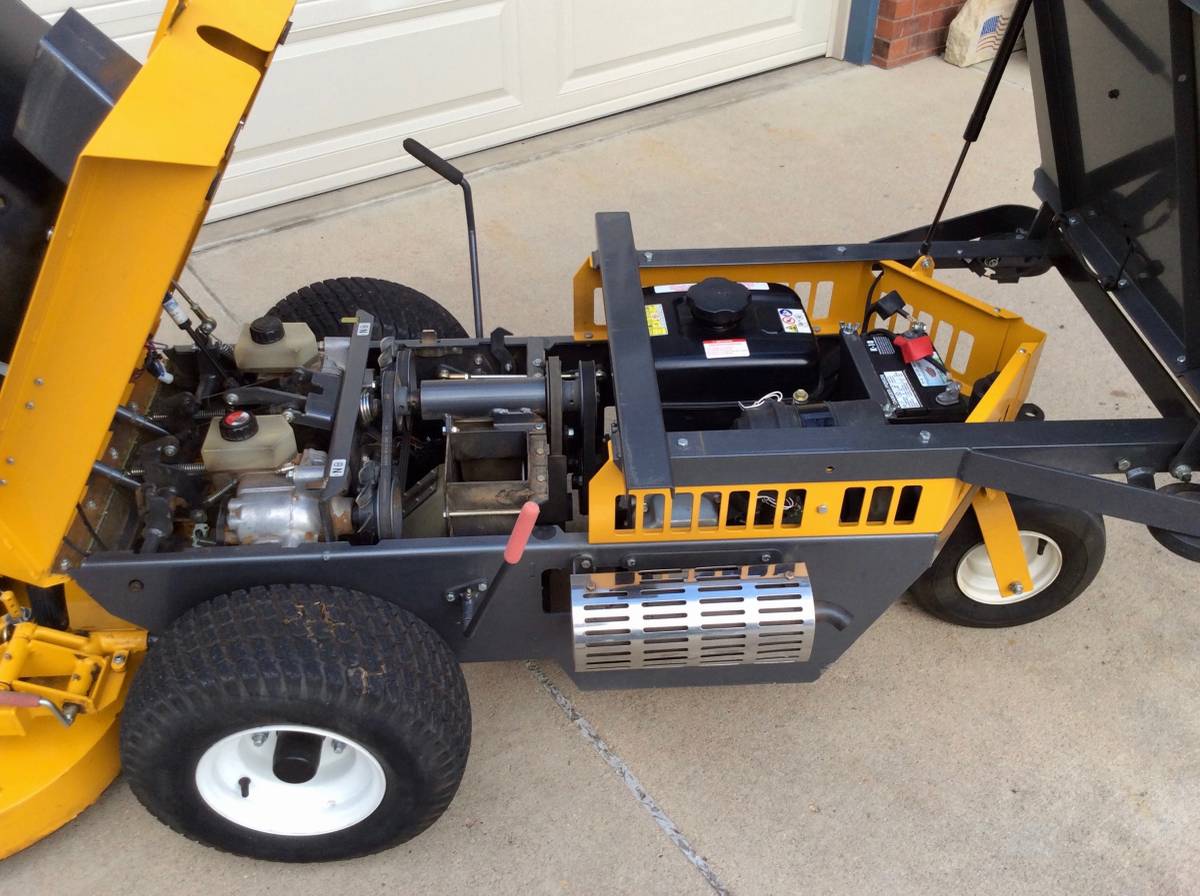

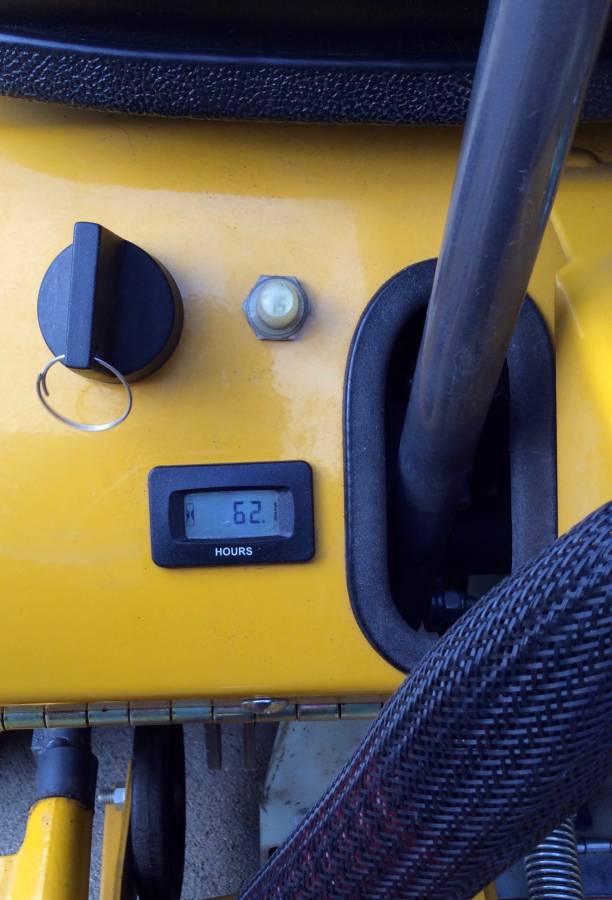

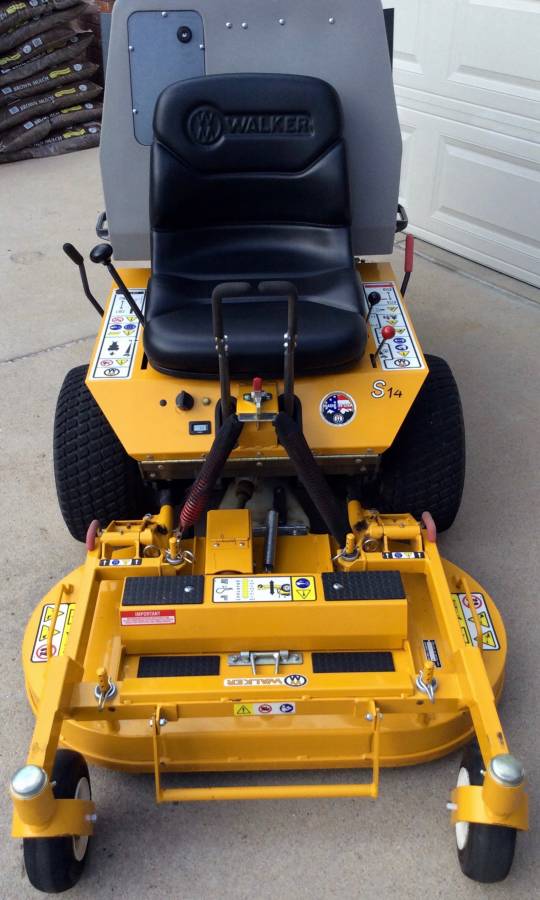

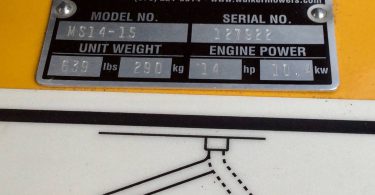

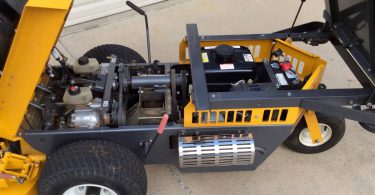

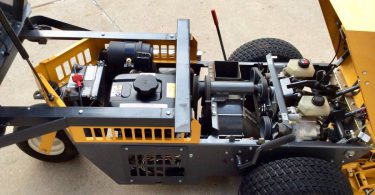

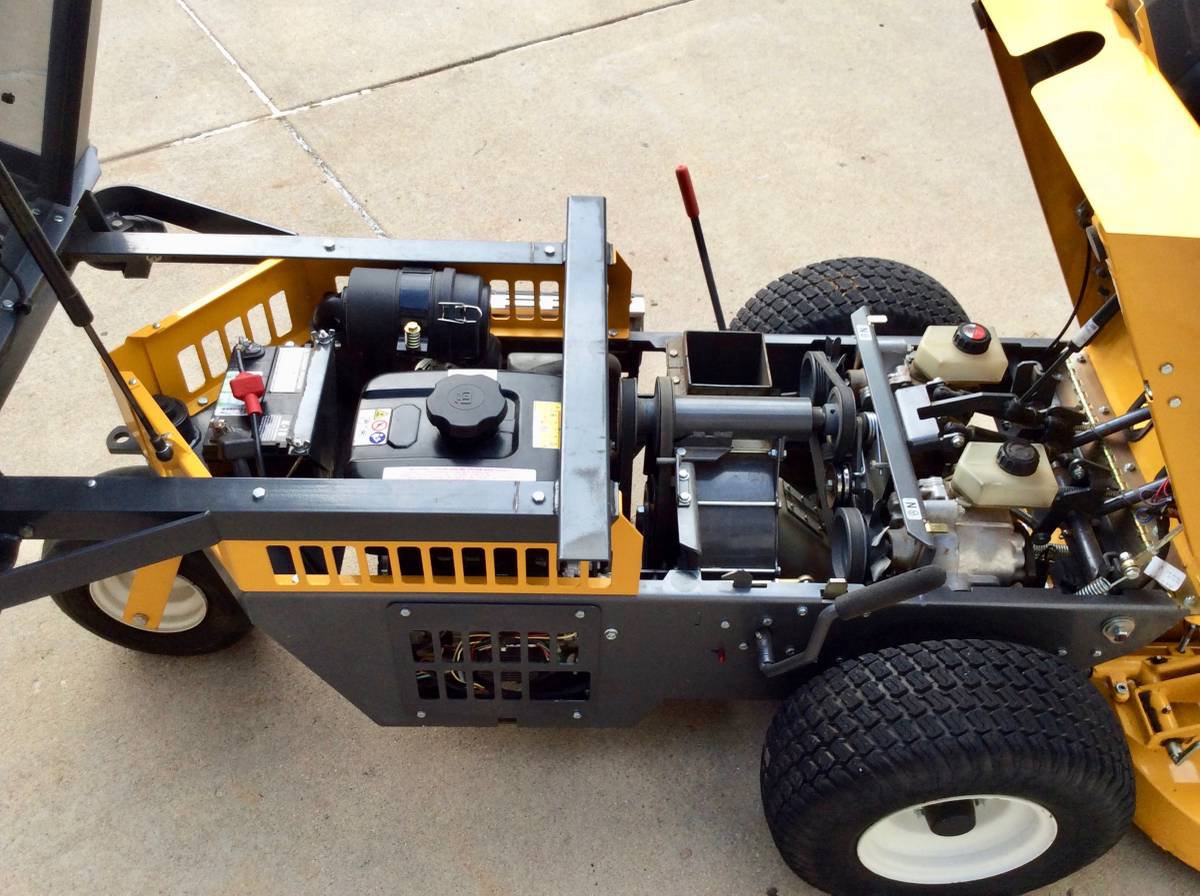

This particular Model S has had only one owner since its purchase in 2014 and remains in its original condition, including the tires. It has accumulated a mere 62.1 hours of usage on the hour meter. The mower features a 36″ GHS reverse direction heavy-duty collection deck (serial number D1-151077) and is powered by a reliable 14hp Subaru-Robin engine (serial number show contact info).
Here are the specifications:

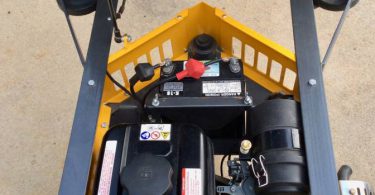

ENGINE
– Manufacturer: Subaru Robin
– Model: EX40, 1 cylinder
– Displacement: 404 cc (24.65 cu. in.)
– Maximum Power: 14 HP at 3600 RPM
– Maximum Torque: 19.9 ft-lbs
– Cooling System: Air
– Fuel: 87 Octane Min. 10% Ethanol Max.
– Fuel Capacity: 1.9 gal (7.2 liters)
ELECTRICAL
– Battery: 12 Volt, 300 CCA
– Charging System: Flywheel Alternator
– Charging Output: 13 Amp DC (Regulated)
TRANSMISSION

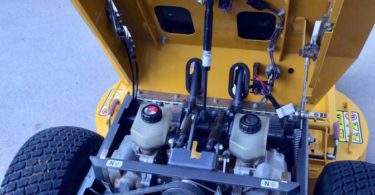

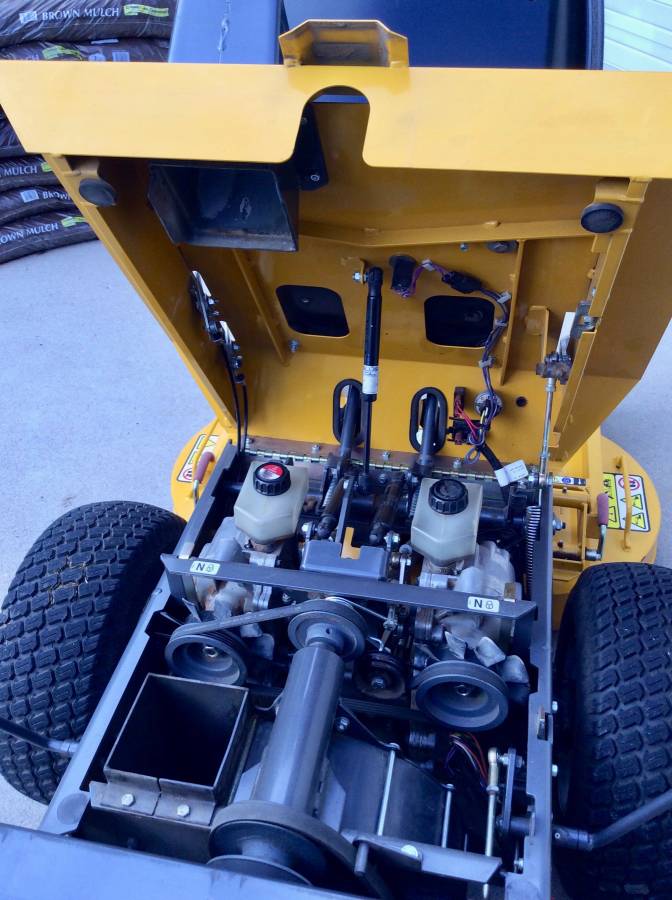

– Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles

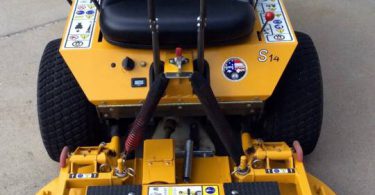

– Steering: Hand Lever Control / Individual Wheel
– Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
– Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
– Forward Speed: 0-6.5 MPH (0-10.5 km/h) Infinitely Variable
– Neutral: Transmission Release by Manual Dump Valve
BLADE DRIVE
– PTO Shaft: Sliding Spline Shaft with Two (2) High-Speed U-Joints
– Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake
GRASS HANDLING
– Blower: 12.5 in. Diameter, Three-Blade Wheel, Integrated Thru-Shaft PTO
– Maximum Blower RPM: 2900

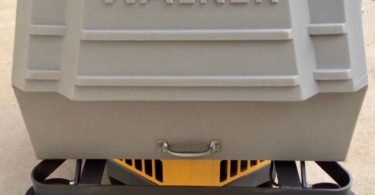

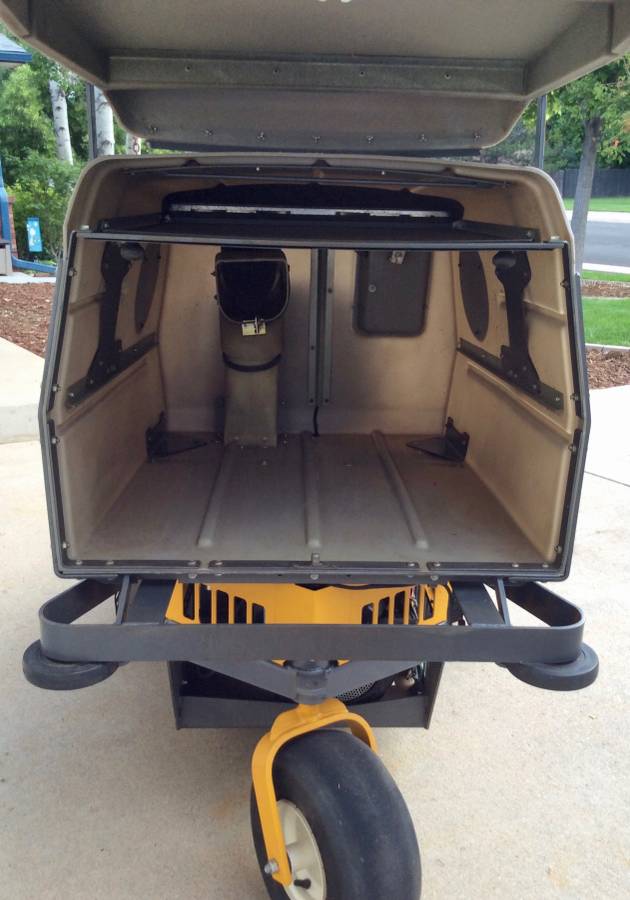

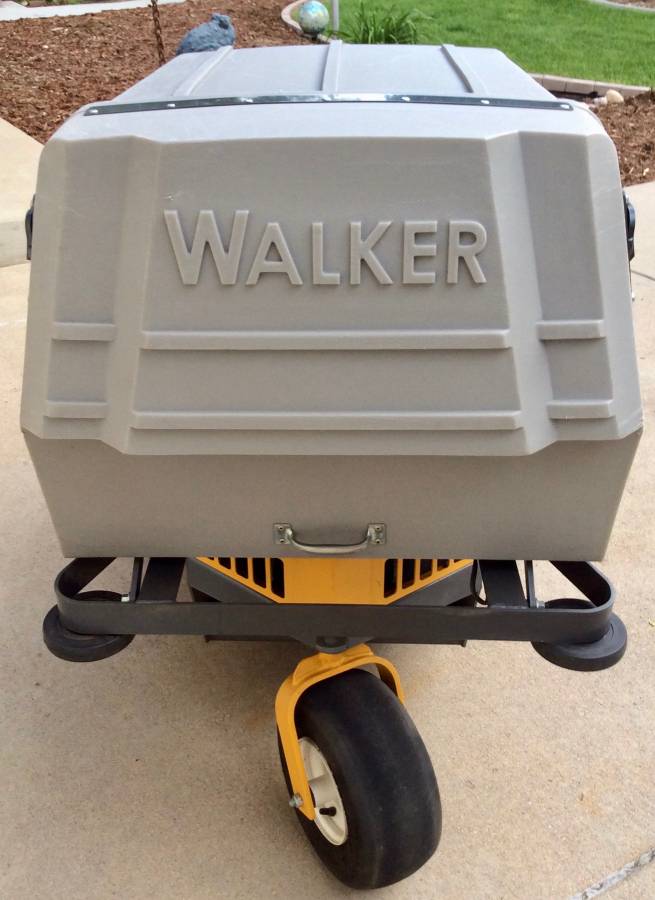

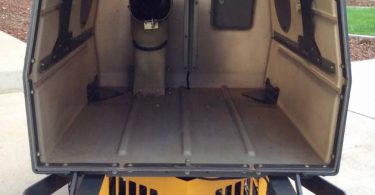

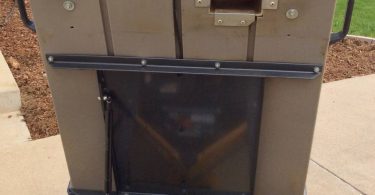

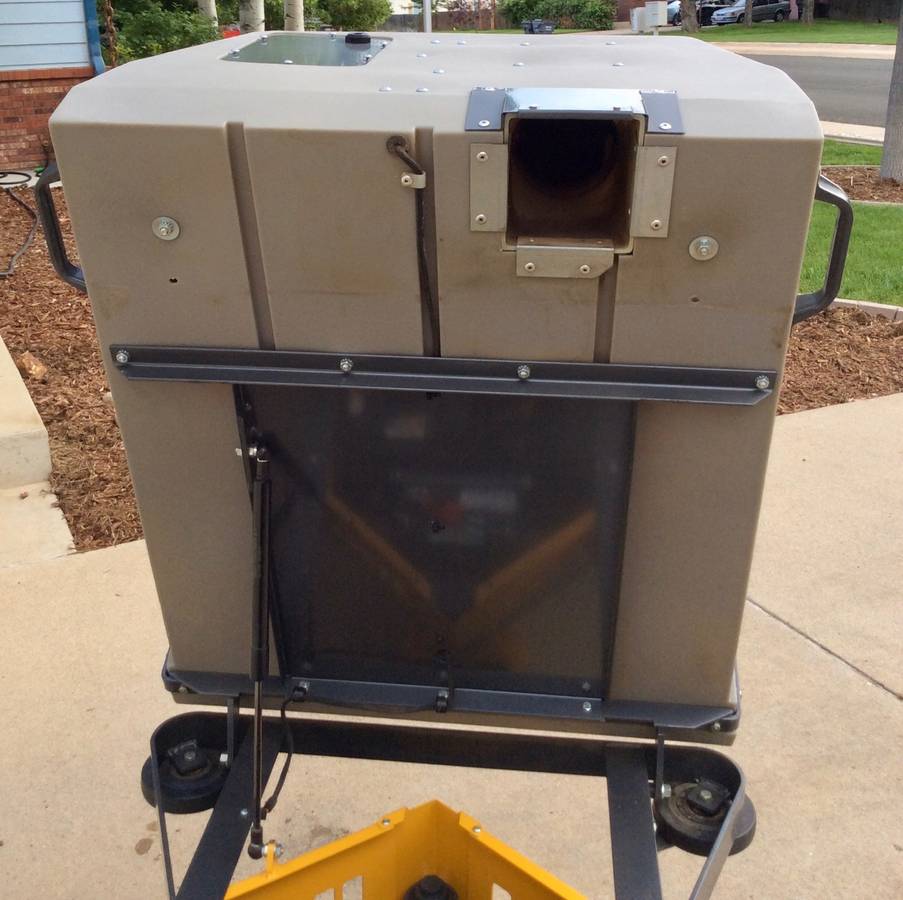

– Grass Catcher Capacity: 65 gallons / 7 bushels
– Full Signal: Oscillating vane switch mounted on grass delivery spout triggers horn signal
– Powerfil®: Oscillating delivery spout driven by 12-volt electric gear motor spreads material throughout the interior of the catcher

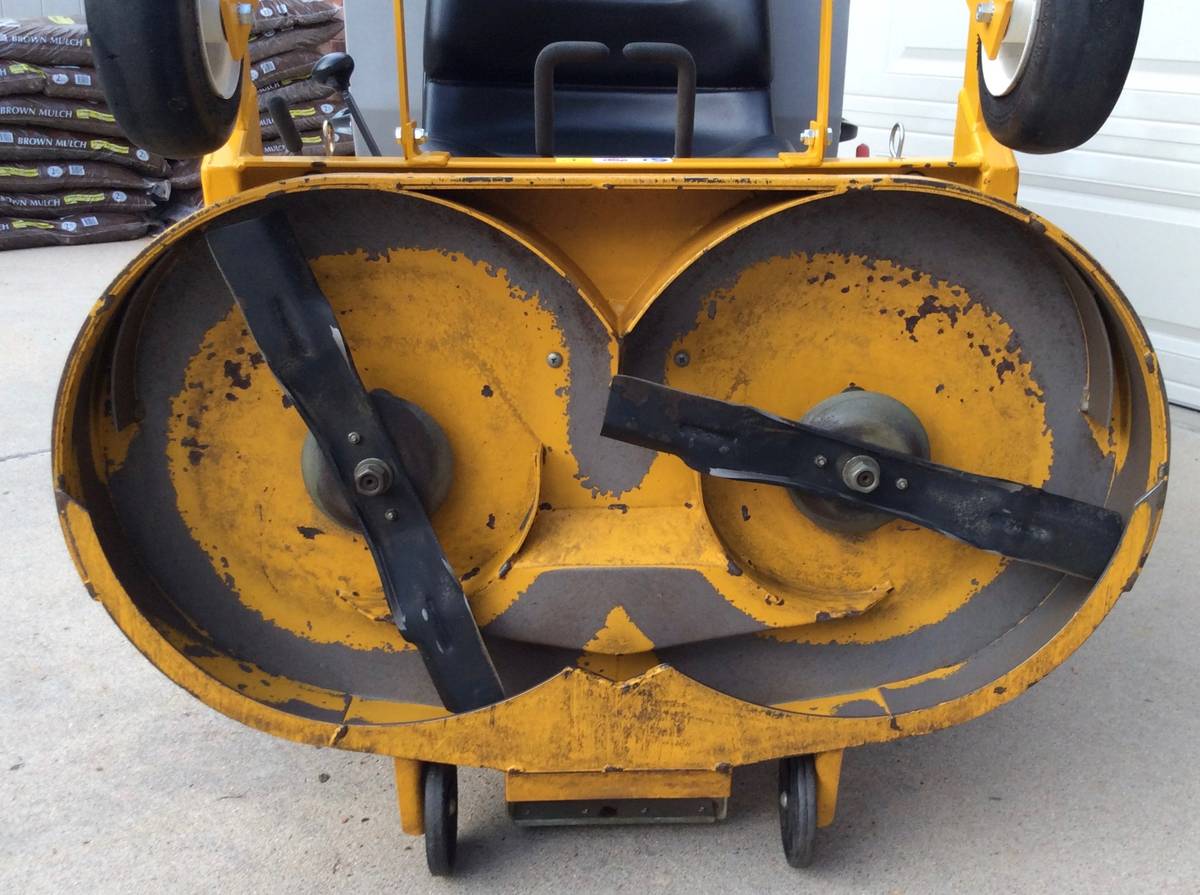

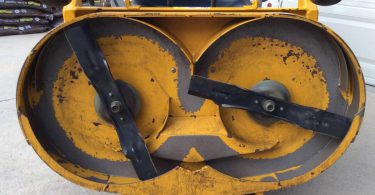

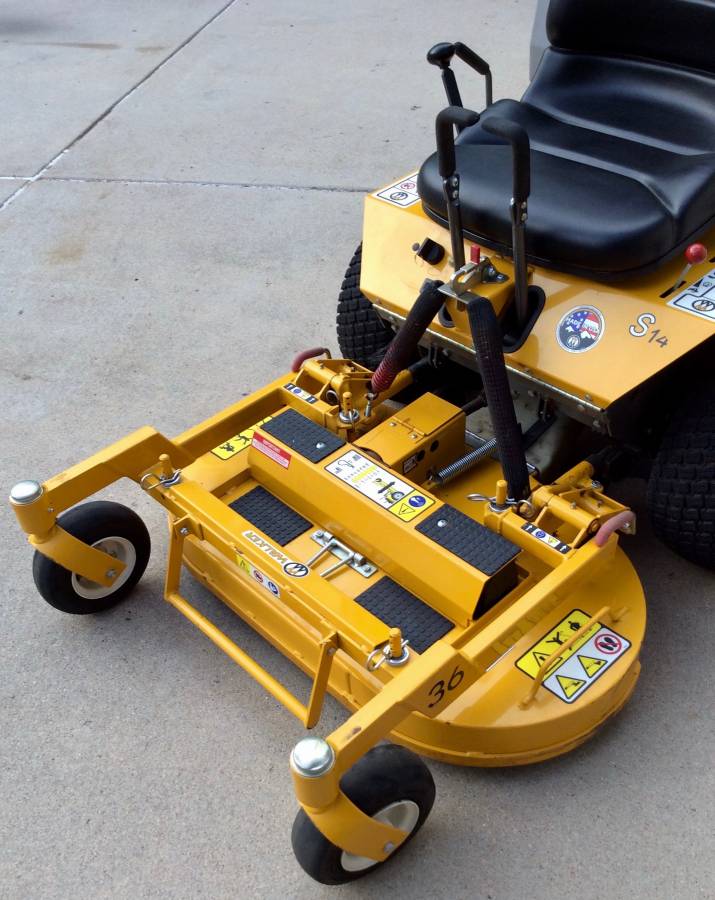

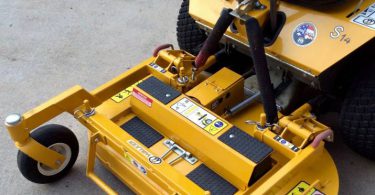

DECK, with extra blades
– Cutting Width: 36 inches (91 cm) (Collection)
– Cutting Height: 1 to 4 inches (2.5 to 10 cm) in 1/2 inch (1 cm) increments
– Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs
TIRES
– Drive: 18 x 7.00-8 Pneumatic 4-Ply
– Tailwheel: 13 x 6.50-6 Pneumatic 4-Ply
– Deck Caster: 8 x 3.00-4 Semi-Pneumatic, No-Flat
WEIGHT
– Tractor Only: 595 lbs (270 kg)
– Tractor with C36 deck: 766 lbs (347 kg)
DIMENSIONS
Tractor Length:
– Tractor alone: 63.75 inches (162 centimeters)
– Tractor with C36 deck: 87 inches (221 centimeters)
– Tractor with tilted deck: 77 inches (196 centimeters)
– Tractor wheelbase: 43 inches (109 centimeters)
Tractor Width:
– Tractor alone (outside tire): 36 inches (91.5 centimeters)
– Tractor with C36 deck: 37.25 inches (95 centimeters)
